OTMR-3 Scrap Pick Up Machine

Model # OTMR-3

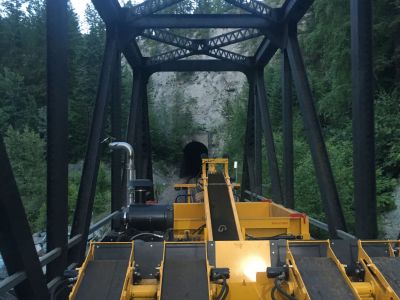

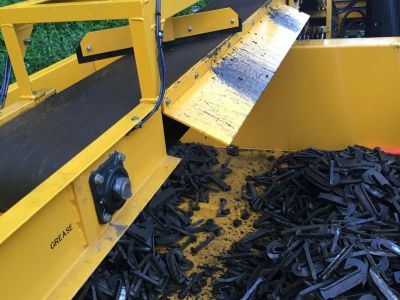

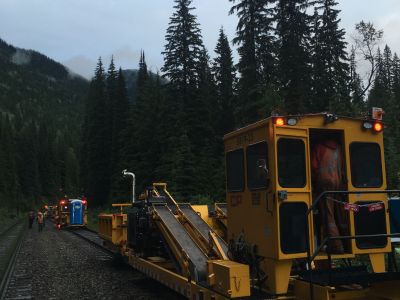

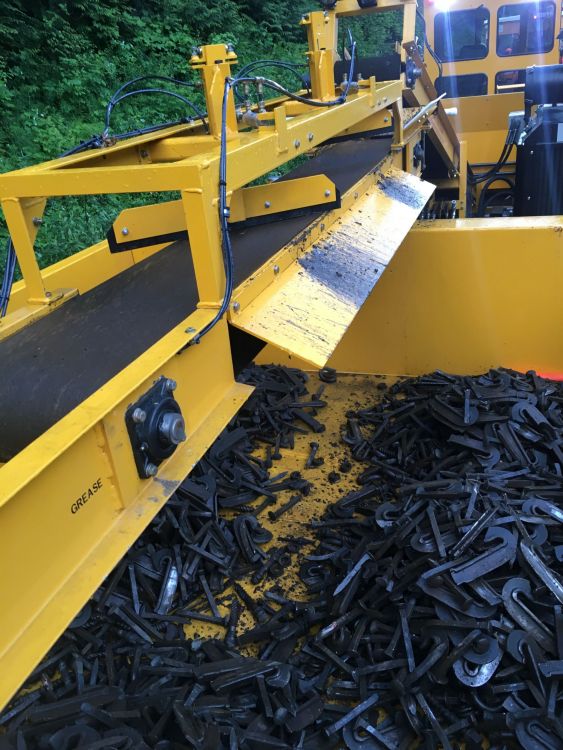

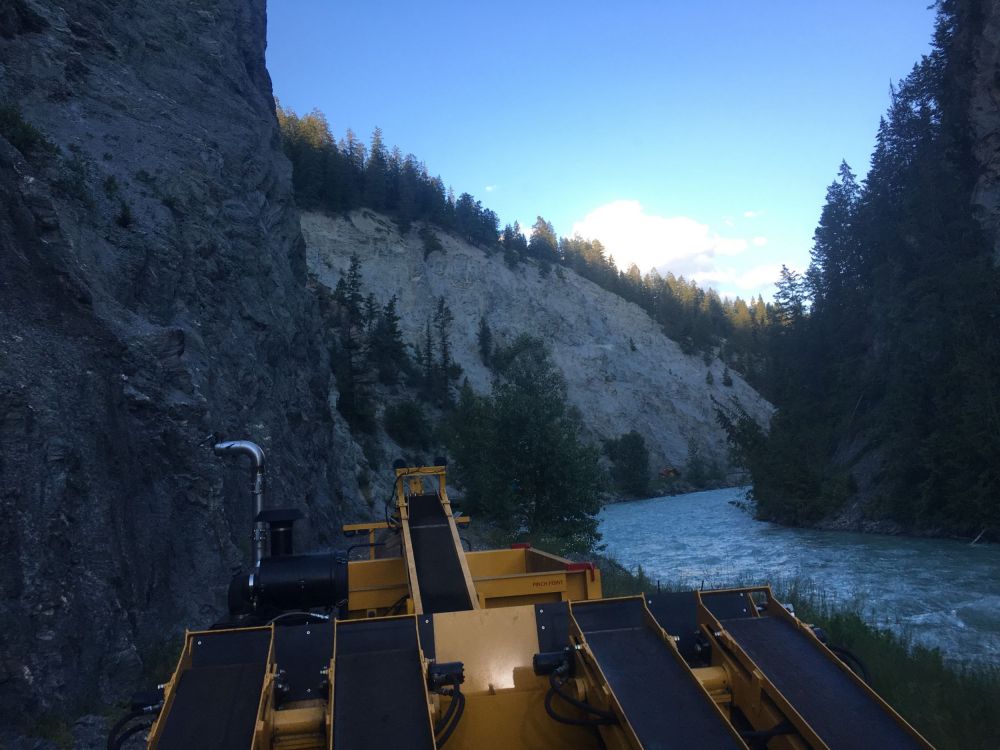

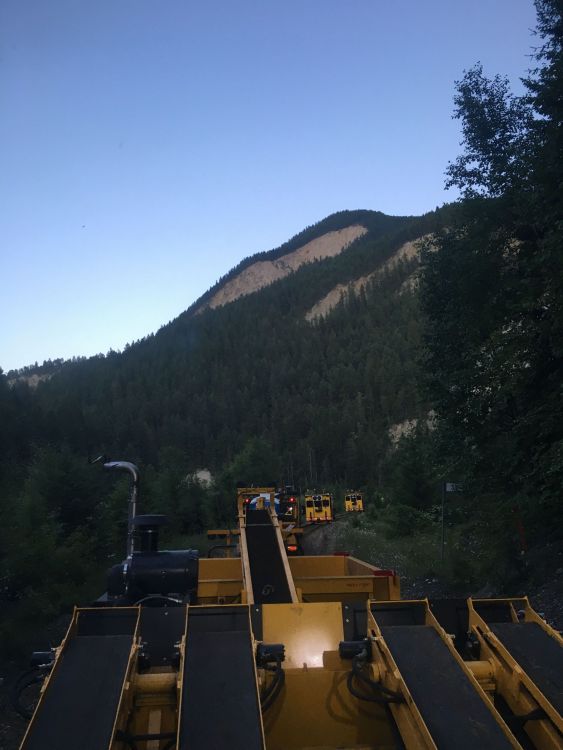

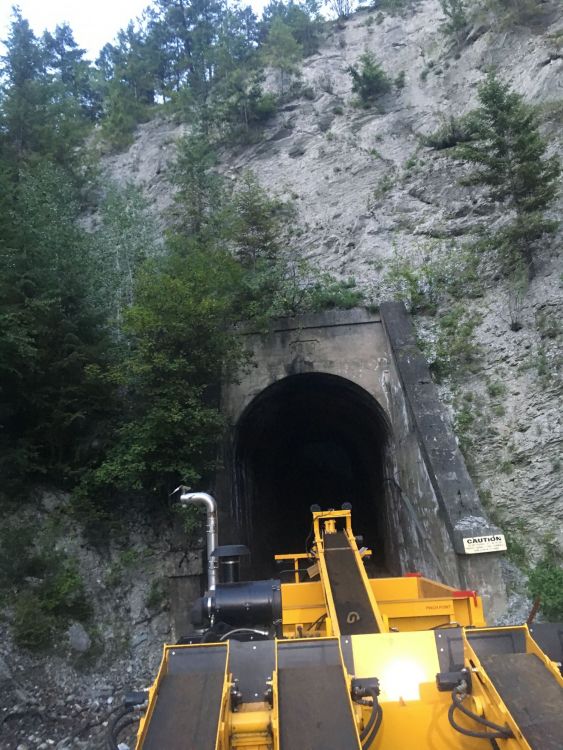

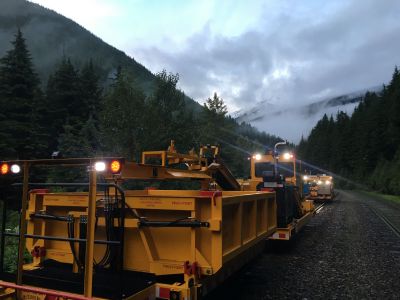

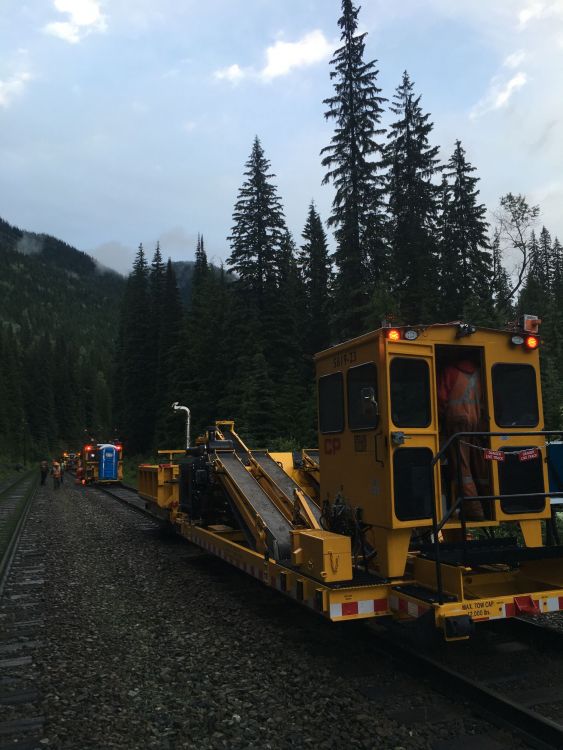

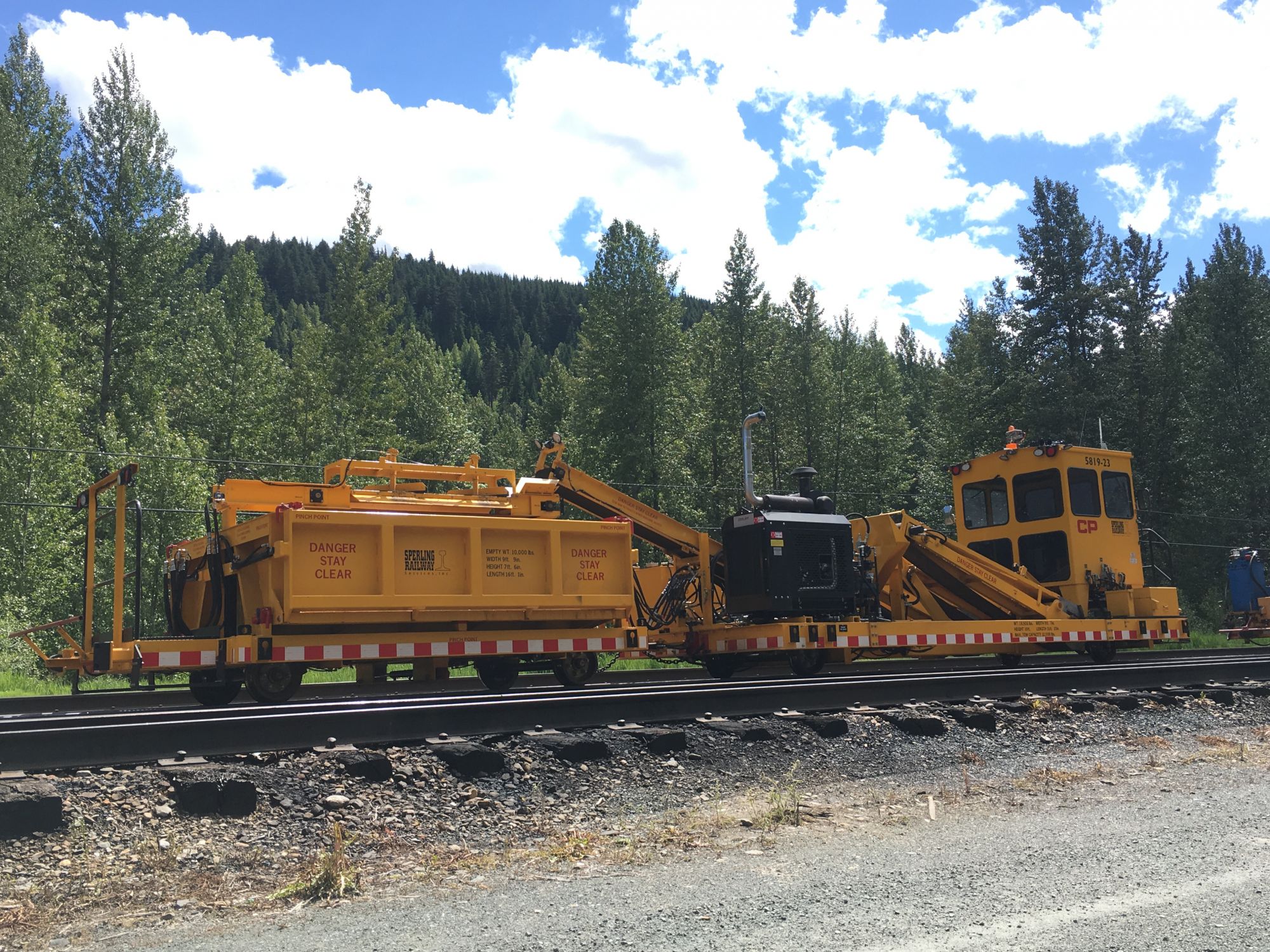

The OTMR-3 is a 4 belt scrap pick up machine used to pick up OTM (spikes, anchors, and clips) in a production tie or rail gang where both rails are in place. This machine utilizes 4 conveyors with permanent magnet pick up drums that feed into an 215 ft3 hopper which can be dumped on either side of the track. The machine has an enclosed, conditioned cab where most operator functions can be performed from the operator's seat, including dumping the hopper and adjusting the conveyor height. The extended capacity hopper is towed by the machine and is capable of hauling 22,000 lbs. of scrap. A hopper loading system and camera allow the operator to control and ensure even loading of the hopper.

Cab: Enclosed

Hopper Capacity: 215 ft3

Length: Pick Up Chassis 31'10", Hopper 16'1"

Width: Pick Up Chassis 9'7", Hopper 9'9"

Height (Above Top of Rail): Pick Up Chassis 10', Hopper 7'6"

Weight: Pick Up Chassis 19,500 lbs., Hopper 10,000 lbs.


Want More Information?

Download complete data at right
